Introduction

Deploy Infrastructure and Secure Connection to Amazon S3

architecture

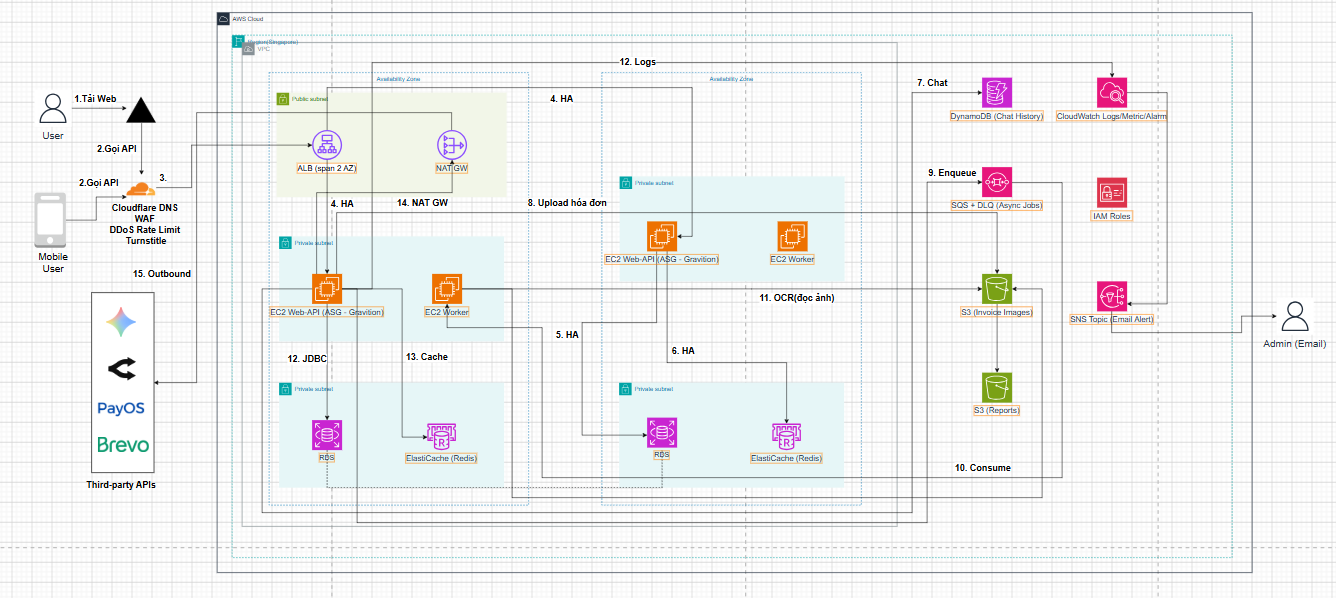

Figure 1. Overall network infrastructure architecture and AWS service integration

Introduction Overview

This lab fully documents the process of building and testing cloud infrastructure for the Money Manager personal finance management project.

The workshop focuses on:

  • Setting up a secure private network subsystem (VPC).
  • Configuring separation of API application servers and Workers.
  • Deploying data storage services: MySQL RDS, Redis ElastiCache, DynamoDB.
  • Configuring SQS asynchronous queues.
  • Optimizing network traffic using VPC Endpoints to Amazon S3 to protect OCR invoice images from information leakage risks over the public Internet and reduce NAT Gateway costs.
  • Through this hands-on practice, we gained exposure to system design methodology following the AWS Well-Architected Framework, with particular emphasis on two pillars: Security and Cost Optimization.
